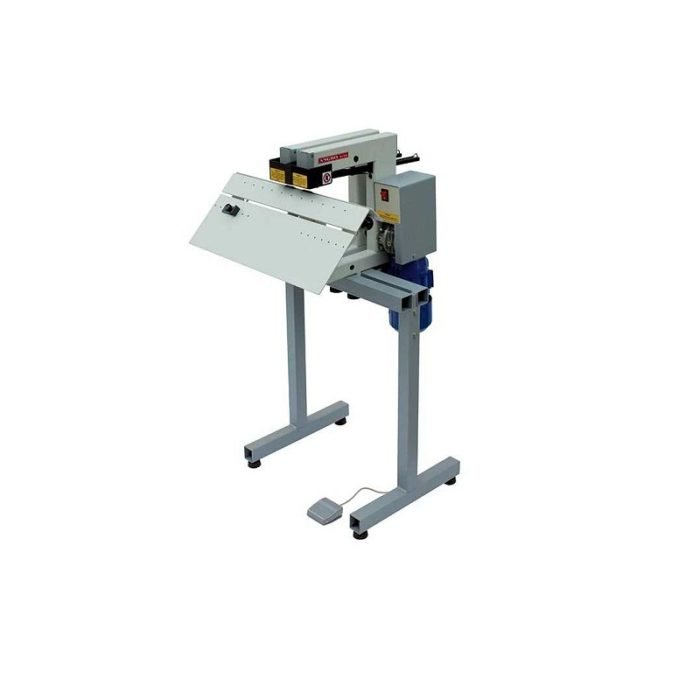

Grafcut X-14 električna heftalica
A solid build professional, electric stapling machine 1 or 2 heads with option to use up to 4 heads.
Stapling flat or loop in standard (no extra tools needed). Self adjusting force of stapling for different block thickness.
- Professional, electric stapling machine for saddle stapling and flat stapling
- Flat 24/6 or loop Ri24/6 staples mechanism in standard
- 1-2 stapling heads, heads can be retrofitted (up to 4-heads possible)
- Extremely durable stapling heads for pro users
- Stapler capacity: 300 pcs (type 24 staples) or 400pcs (type 26 staples)
- Standard maximum stapling thickness flat/loop up to 50 sheets 80 gsm (approx. 5 mm)
- Optional head for higher thickness 100 sheets flat only (approx. 10 mm)
- Flat closing of staples
Description
Distance of stapling heads | Adjustable in range 48 mm – 245 mm . |
Stapling thickeness max | 50 mm (100 mm with optional mechanism “9” – only 1 or 2 heads max) |
Material feeding and cycle | Manual feeding of meterial. Electic stapling by pressing foot pedal. |
Speed | 93 cycles/minute |
Staple head capacity | 300 pcs type 24 or 400 pcs type 26 |
Saddle stapling size | 298 mm A3 (open size A2) |
Motor | 0,18 kW |
Weight | ~28 kg (single head) or ~30 kg (dual head) |
Dimensions | W × L × H 540×535×930 (mm) |
Noise level | < 70 dB(A) |
Power supply | 230V/50Hz *optional 110-115V/ 60Hz |
