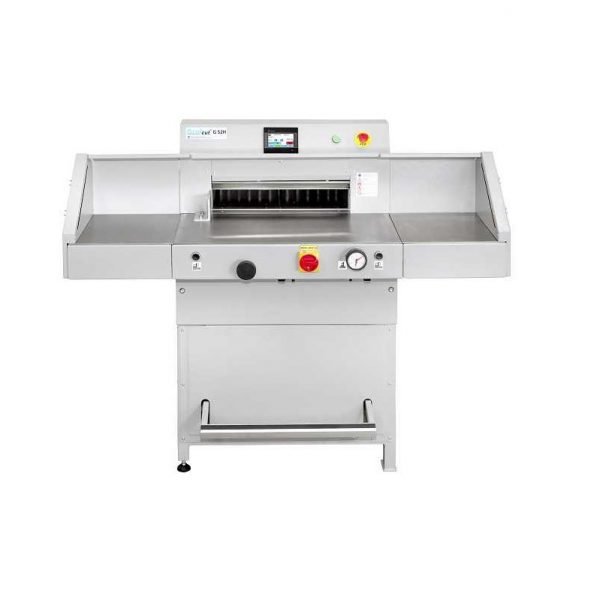

Giljotina GRAFCUT 52

  • cutting the maximum format 520 mm width x 520 mm depth
  • high cutting accuracy 0,1 mm of max paper stack 80mm
  • 22 mm smallest cut (false clamp 40mm in standard)
  • electro-mechanical drive for knife and clamp and backguage
  • option to clamp without cut by button
  • clamping pressure adjustment on touch screen
  • optical cutting line indicator

Description

Cutting width 520 mm
Cutting depth 520 mm (program mode)/530 mm (manual crank)
Cutting height 80 mm
Smallest cut 22 mm without false clamp (40 mm with false clamp)
Front table height 904 mm
Front table lenght 466 mm
Cutting accuracy 0,1 mm
Optional side tables dimension 350 x 400 mm
Power supply*: 230V/50 Hz, 2 kW (other voltages available)
Blade drive Electro-mechanical
Clamp drive Electro-mechanical (electronically adjustable)
Backguage Electro-mechanical
Dimensions w/o side tables 833 x 1215 x 1244(H) mm (it is possible to reduce width to 785 mm for transportation)
Dimensions with side tables 1533 x 1215 x 1244(H) mm (it is possible to reduce width to 785 mm for transportation)
Net weight 310 kg
Colour RAL 7004- signal grey
Dimension and weight with export package 1500 x 1080 x 1500 mm, 386 kg
